The Anatomy of a Roof: Understanding Roof Components

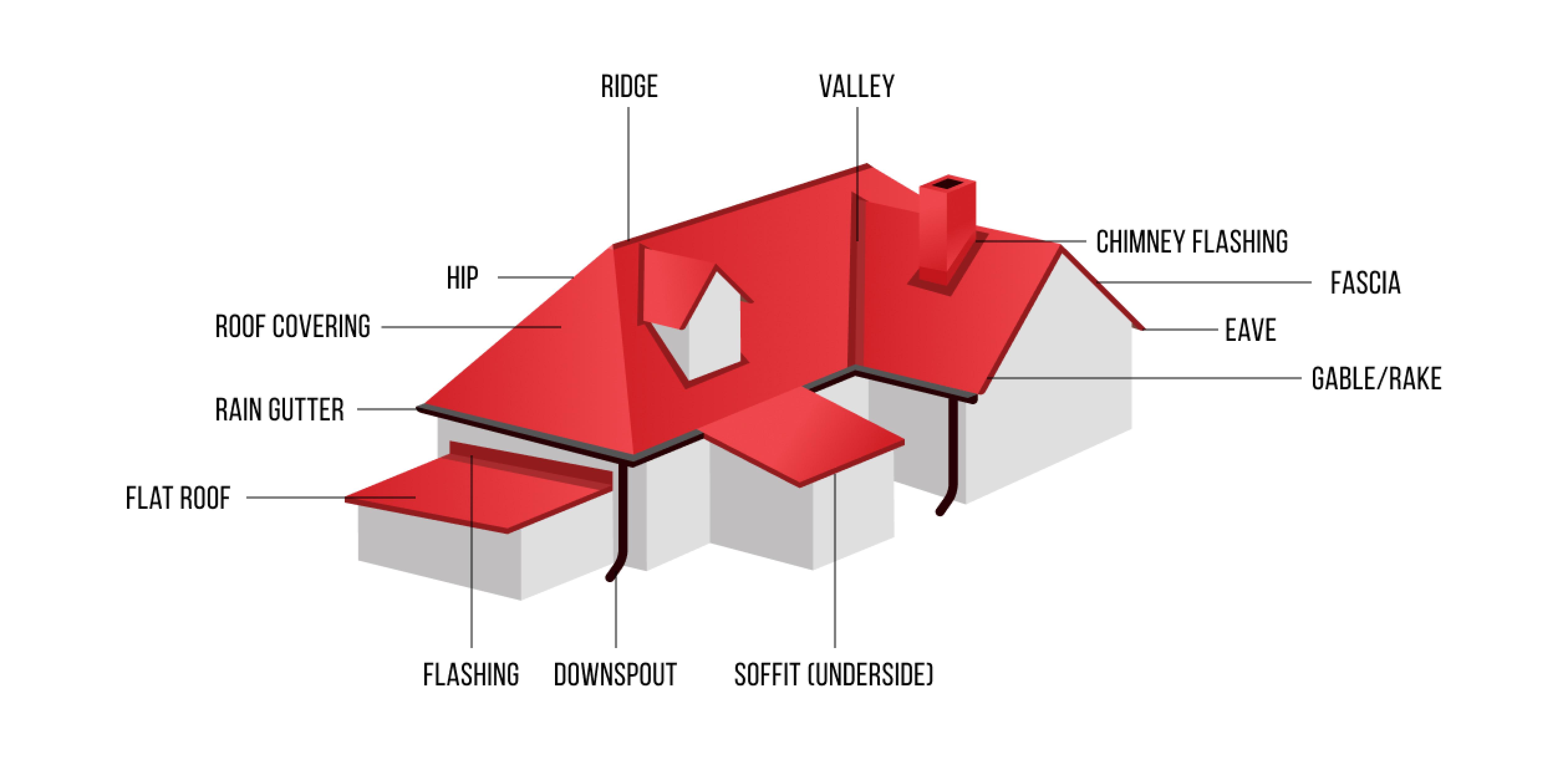

The Anatomy of A Roof Diagram | Roof Ridge | Roof Valley | Roof Hip | Roof Covering | Rain Gutter | Flat Roof | Roof Flashing | Gutter Downspout | Roof Soffit | Chimney Flashing | Roof Fascia | Roof Eave | Roof Gable | Roof Rake

Recognizing the Importance

When it comes to your roof, understanding its components is essential. Whether you’re a homeowner looking to maintain your roof or a commercial business owner in need of repairs, knowing the anatomy of a roof can save you time, money, and headaches.

While it might seem like a simple structure, a roof is composed of various components that work together to provide protection, insulation, and structural integrity.

To help you gain a better understanding of your roofing system, we’ll delve into the key elements that make up the anatomy of a roof. From the covering and underlayment to the flashing and gutters, we’ll cover it all.

Roof Decking

The roof deck, also known as the sheathing or substrate, is the base layer of the roof. It is typically made of plywood or oriented strand board (OSB) and serves as the foundation for the other roofing materials. Roof decking provides structural support and a flat surface to which the roofing materials can be attached securely.

Roof Covering

This is the visible outermost layer of the roof, which can be made of various materials such as asphalt shingles, metal, clay tiles, cedar shake, or slate. It serves as a protective shield against rain, hail, and UV rays. The choice of roofing material depends on factors such as climate, budget, and architectural style.


Underneath the roof covering, you’ll find the underlayment. It acts as a secondary defense against moisture infiltration and plays a key role in preventing water damage. In regions like Statesboro, Savannah, and Richmond Hill, where heavy rain and storms are common, a high-quality underlayment is crucial for waterproofing your roof.


The fascia is the vertical edge that runs along the roofline, supporting the bottom row of roof tiles or shingles and providing a finished appearance to the roof’s edge.


The eave is the lower edge of the roof that overhangs the exterior wall. It helps direct water away from the walls and foundation of the building, preventing water damage.


The soffit is the underside of the eaves, bridging the gap between the exterior wall and the edge of the roof. It provides ventilation to the attic and helps regulate temperature and moisture levels.


The gable, also known as the rake, is the triangular portion of a wall between the edges of intersecting roof pitches. It enhances the aesthetic appeal of the roof while providing additional structural support.


Flashing is used to seal joints and transitions in the roof, preventing water from seeping into vulnerable areas like valleys, chimneys, and roof edges. Properly installed flashing is essential for maintaining a watertight roof, especially in regions that are prone to rain and humidity.

Roof Ridge

The ridge of the roof is the highest point where two roof slopes meet. Ridge vents are often installed at this point to allow for proper ventilation, reducing heat buildup in your attic, and minimizing humidity. By lowering humidity levels, they prevent mold and moisture-related problems that could damage your roofing materials over time. This becomes particularly vital in Georgia’s hot and humid climate, ensuring your investment is protected and your roofing system’s lifespan is extended.


The hip is the external angle formed by the intersection of two sloping sides of a roof, typically where adjacent slopes meet. Hips are common features in hip roofs, providing stability and visual interest to the roofline.


The valley is the internal angle formed by the intersection of two sloping roof surfaces. Valleys are susceptible to water accumulation, so proper installation and maintenance are crucial to prevent leaks and water damage.

Gutters and Downspouts

Gutters and downspouts are integral components for managing rainwater. They collect roof runoff and divert it away from your home, preventing stagnant water buildup. To protect your roof, it’s crucial to keep gutters and downspouts free from debris such as leaves and pine straw, which can lead to clogs. Stagnant water on your roof can cause damage and compromise its structural integrity. Regular cleaning ensures the longevity and durability of your roof, ultimately saving you from potentially costly repairs down the road.

A roof is more than just a protective cover over our heads; it’s a complex system composed of various components that work together to safeguard your home or business from the elements. At Chandler Roofing, we understand the importance of a sturdy and well-maintained roof, and we believe that knowledge is the key to making informed decisions about your roofing needs.
